In Norwich, we often see projects where the simplest strip footings won't cut it. The ground here can vary dramatically over a few hundred metres; you might start on a firm chalk outcrop near Mousehold Heath and end up in compressible alluvium down by the River Wensum. A raft foundation design becomes a practical way to spread structural loads across a wider footprint, reducing differential settlement without piling to rockhead. We start from the CPT test data where access is tight in the city centre, or from test pit observations on greenfield sites where the water table is manageable. Across Norfolk, we've designed mats for everything from apartment blocks to industrial tanks, always tailoring the approach to the local sequence of Norwich Crag, chalk, and made ground.

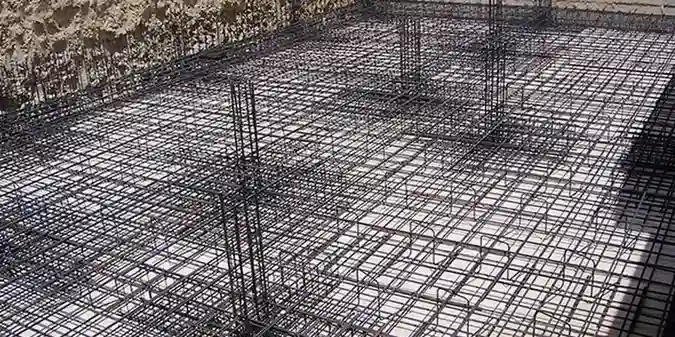

A raft foundation in Norwich chalk must account for dissolution features; the stiff chalk can hide soft clay-filled pipes that trigger differential settlement.
Methodology applied in Norwich
Local geotechnical conditions in Norwich
A medium-rise residential development on the old Colman's site near the river faced a typical Norwich problem: 4 metres of soft alluvium over chalk, with the water table at 1.5 m depth. The structural engineer initially proposed isolated pad footings, but our review showed differential settlement exceeding 30 mm across the footprint. Converting to a cellular raft, stiffened by downstand beams at column lines, reduced the predicted differential to under 12 mm and eliminated the need for deep piles. The main risk on Norwich sites isn't just bearing failure; it's the long-term consolidation of alluvium and the potential for chalk dissolution voids. A well-designed mat foundation bridges these irregularities, but only if the ground investigation is thorough enough to map them.
Our services
Raft foundation design in Norwich requires a joined-up approach between ground investigation, laboratory testing, and structural modelling. We offer a complete package from site characterisation to reinforced concrete detailing.
Geotechnical Interpretative Report for Raft Design
Synthesis of borehole, CPT, and lab data into a ground model with characteristic values for bearing resistance, settlement parameters, and chemical aggressivity for concrete specification.
Numerical Modelling of Raft-Soil Interaction
Finite element analysis modelling the raft as a flexible or rigid plate on a Winkler spring bed or continuum, outputting bending moments, shear forces, and predicted settlement contours.
Construction Phase Monitoring
Settlement plates, inclinometers, and precise levelling during excavation and concrete casting to verify that the raft performance matches the design assumptions.
Questions and answers
How much does a raft foundation design for a Norwich project typically cost?
For a site in Norwich, the design fee for a raft/mat foundation typically falls between £750 and £3.230, depending on the project's complexity, the building footprint size, and the number of load cases to be checked. A simple ground-bearing slab for a light industrial unit sits at the lower end, while a stiffened cellular raft for a multi-storey structure on variable alluvium with 3D finite element modelling moves toward the upper end. Every quote includes the interpretative report and the reinforcement drawings.
What are the main advantages of a raft foundation over individual footings in Norwich?
The key advantage is the ability to bridge soft or variable ground. In Norwich, where alluvium and chalk dissolution features can create uneven bearing conditions, a raft reduces differential settlement by distributing column loads across the entire slab. It also provides a waterproof base in areas with a high water table, such as near the Wensum floodplain, and can be designed as a stiffened raft to resist minor ground movements without excessive cracking.
What ground investigation is required before designing a raft foundation?
BS EN 1997-2 specifies the minimum investigation scope. For a Norwich raft, we typically combine cable percussion boreholes to sample the chalk and Crag, with CPTs to profile the alluvium continuously. Laboratory tests must include consolidation (oedometer) on cohesive soils to predict settlement rate, and triaxial tests on the bearing stratum for strength. A plate load test may be specified to calibrate the subgrade reaction modulus on site.
Is a raft foundation suitable for a site with a high water table in Norwich?
Yes, often it is the preferred solution. A reinforced concrete raft designed as a watertight structure can resist hydrostatic uplift. We calculate the buoyancy forces under the design groundwater level and offer a tension pile or thickened slab detail if needed. The key is an accurate assessment of the long-term water table using standpipe piezometers installed during the ground investigation, not just the level observed during drilling.
